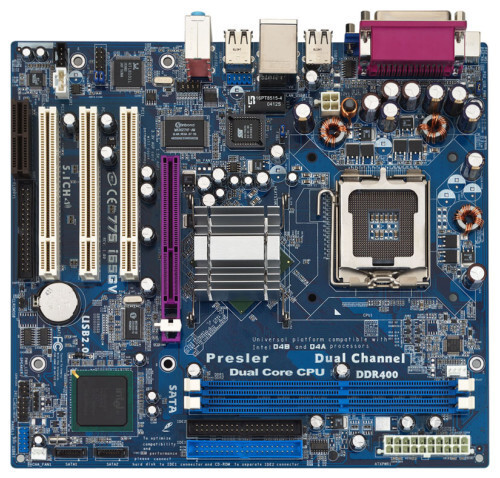

ASROCK 775I65GV LGA 775 for Intel
โดย วิษณุ ภิญโญยิ่ง
ปรับปรุงล่าสุดเมื่อ 31 มี.ค. 2555.
LGA 775 for Intel® P4 processor
Intel® 865GV chipset
Supports LGA 775 FSB800/533MHz processor, Prescott Ready and H-T Technology
Support Intel® Dual Core Processors, including Pentium D and Extreme Edition
Intel® 04B/04A processors compatible
Supports DDR400 and Dual Channel Technology
Hybrid Booster - ASRock Safe Overclocking Technology
Int. Intel® Extreme Graphics 2, ASRock AGI8X - VGA upgrade interface
Advanced storage interface SATA 1.5Gb/s
5.1 channel Audio, 10/100 PCI Ethernet LAN
ASRock I/O Plus: 6 ready-to-use USB 2.0 ports
Worldwide Patent ASRock A.G.I. 8X
LGA 775 CPU Installation Live Demo inside
Product Specifications
General
CPU
- LGA 775 for Intel® Pentium 4/Celeron processor
- Support Intel® Dual Core Processors*, including Pentium D and Extreme Edition
- FSB 800/533/400 MHz
- Supports Hyper-Threading Technology
- Prescott support
- Intel® 04B/04A processors compatible
*Only supported with PCB version R1.04 or higher, and BIOS version P1.90 or higher.
Chipset
- Northbridge: Intel® 865GV
- Southbridge: Intel® ICH5
Memory
- Dual Channel DDR memory technology
- Supports DDR400/333/266 non-ECC, un-buffered memory
- DIMM slots: 2
- Max. capacity of system memory: 2GB
BIOS
- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Audio, Video and Networking
Graphics
- Integrated Intel® Extreme Graphics 2 in Intel® 865GV chipset
Audio
- CMedia CMI9739A 6 channel AC'97 audio codec
LAN
- Realtek RTL8101 PCI 10/100 Fast Ethernet controller
- 802.3u, WOL supported
- Supports PXE
Expansion / Connectivity
Slots
- Worldwide patent ASRock A.G.I.8X graphics upgrade slot (AGP8X/4X compatible)
- 3 x PCI slots( PCI 2.2 compliance)
- 1 x AMR slot
Connector
- 2 x SATA 1.5Gb/s connectors
- 2 x ATA100/66 IDE connectors (supports 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin +12V power connector
- IDE LED connector
- CD/AUX audio in header
- Front panel audio connector
- 2 x USB 2.0 port pin headers
- 1 x COM port header
Rear Panel I/O
ASRock I/O Plus
- 6 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x VGA port
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 1 x Audio ports ( Line In/Out, Mic In)
 | |
ราคา: | 700 บาท | ต้องการ: | ขาย |
ติดต่อ: | วิษณุ ภิญโญยิ่ง
| อีเมล์: |  |
สภาพ: | มือสอง
| จังหวัด: | สมุทรปราการ |
| | | |
โทรศัพย์: | 084-0013886 | |
มือถือ: | 084-1315048 | |
ที่อยู่: | 142/42 ต.บางพึ่ง อ พระประแดง จ สมุทรปราการ |
|
