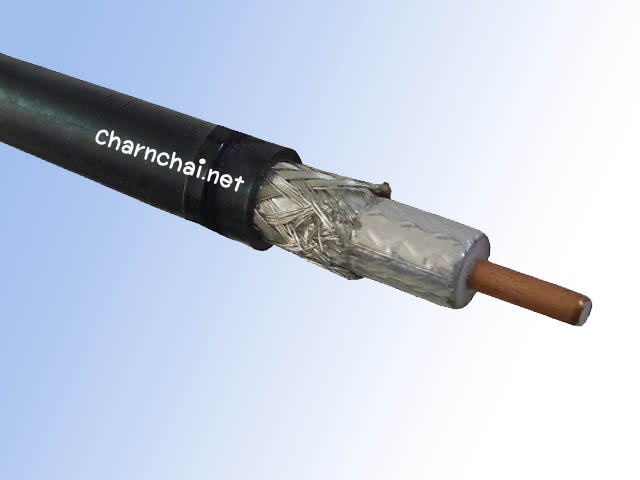

สายRG-8 Commscope รุ่น CNT-400, CNT

  ยี่ห้อ: Commscope รุ่น: CNT-400 รายละเอียด: CNT-400, CNT® 50 Ohm Braided Coaxial Cable, variable, black PE jacket   Construction Materials   Jacket Color   Black Jacket Material   Non-halogenated PE Braid Material   Tinned copper Shield Tape Material   Aluminum Dielectric Material   Foam PE Inner Conductor Material   Copper-clad aluminum wire     Dimensions   Cable Weight   0.10 kg/m Diameter Over Dielectric   7.240 mm   |   0.285 in Diameter Over Jacket   10.290 mm   |   0.405 in Inner Conductor OD   2.7400 mm   |   0.1079 in Nominal Size   0.400 in Outer Conductor OD   8.080 mm   |   0.318 in     Electrical Specifications   Cable Impedance   50 ohm Capacitance   78.0 pF/m   |   24.0 pF/ft dc Resistance, Inner Conductor   4.490 ohms/km   |   1.370 ohms/kft dc Resistance, Outer Conductor   5.610 ohms/km   |   1.710 ohms/kft dc Test Voltage   2500 V Jacket Spark Test Voltage (rms)   8000 V Maximum Frequency   16.20 GHz Operating Frequency Band   30 – 6000 MHz Peak Power   16.0 kW Shielding Effectiveness   >90 dB Velocity   85%     Environmental Specifications   Installation Temperature   -40 °C to +85 °C (-40 °F to +185 °F) Operating Temperature   -40 °C to +85 °C (-40 °F to +185 °F) Storage Temperature   -70 °C to +85 °C (-94 °F to +185 °F)     General Specifications   Cable Type   CNT-400 Braid Coverage   86% braid Brand   CNT®     Mechanical Specifications   Bending Moment   0.7 N-m   |   0.5 ft lb Flat Plate Crush Strength   0.7 kg/mm   |   40.0 lb/in Minimum Bend Radius, Single Bend   25.40 mm   |   1.00 in Tensile Strength   73 kg   |   160 lb Return Loss/VSWR Frequency Band VSWR Return Loss (dB) 100–520 MHz 1.14 23.69 Electrical Performance Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft) 30 MHz 2.49 0.76 50 MHz 3.18 0.97 150 MHz 4.92 1.50 220 MHz 6.23 1.90 450 MHz 8.86 2.70 900 MHz 12.80 3.90 1500 MHz 16.70 5.10 1800 MHz 18.40 5.60 2000 MHz 19.40 5.90 2400 MHz 21.65 6.60 2500 MHz 22.00 6.70 3000 MHz 24.60 7.50 4000 MHz 28.87 8.80 4500 MHz 30.84 9.40 5000 MHz 32.81 10.00 5200 MHz 33.46 10.20 5500 MHz 34.78 10.60 5800 MHz 35.76 10.90 6000 MHz 36.42 11.10 Regulatory Compliance/Certifications Agency Classification RoHS 2002/95/EC Compliant China RoHS SJ/T 11364-2006 Below Maximum Concentration Value (MCV) ISO 9001:2008 Designed, manufactured and/or distributed under this quality management system
