800-2500MHz Wideband Directional Antenna, Gain 11dBi รองรับ 3G
โดย Buntherng T. ปรับปรุงล่าสุดเมื่อ 21 ส.ค. 2554.

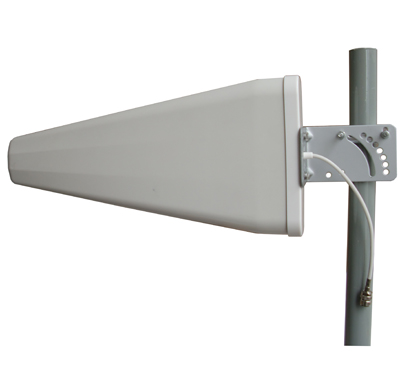

800-2500MHz Wideband Directional Antenna, Gain 11dBi
รองรับ 3G รองรับทุกค่าย
ให้กำลังขยายทั้งส่งและรับดีขึ้น
Description
800-2500MHz 11dBi LDPA Antenna
Electrical Specifications Freq. Range 800-960/1710-2500 MHz
Gain 11dBi
Horizontal Beamwidth 50° to 65°
Vertical Beamwidth 40° to 50°
F/B ratio >15 dB
V.S.W.R < 1.5
Nominal Impedance 50 ohm
Polarization Vertical Max
Power 50 W
Connector N Female
Mechanical Specifications Dimension 400x260x65 mm
Lightning protection DC grounded
Weight 1 Kg
Temperature range: -40 to 70 centigrade
Rated Wind Velocity 60m/s
Mounting Mast Diameter Φ40-50mm
www.wifimove.com
ราคา: | 2,190 บาท | ต้องการ: | ขาย |
ติดต่อ: | Buntherng T. | อีเมล์: |  |
สภาพ: | ใหม่
| จังหวัด: | ปทุมธานี |
| | | |
โทรศัพย์: | 025311895 | IP Address: | 101.108.123.xx |
มือถือ: | 0866804895 | |
|
คำค้น: |
antenna |
|
