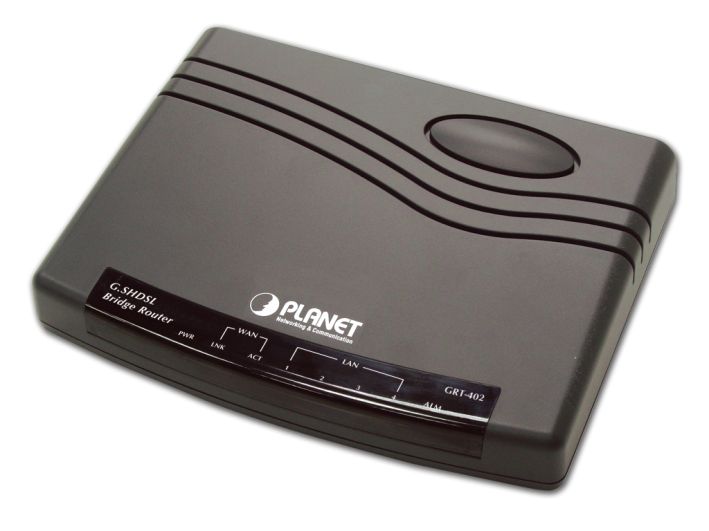

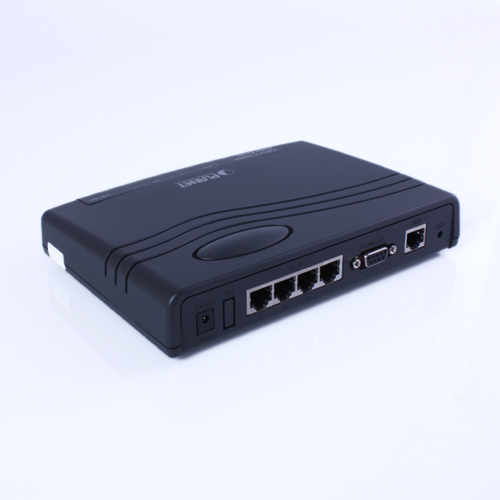

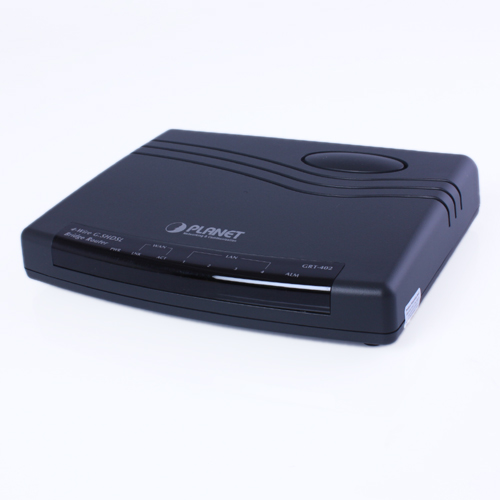

Planet GRT-402 4-wire G.SHDSL Bridge Router

  ** ส่งทั่วประเทศ ** -- รับประกันตลอดอายุการใช้งาน -- ** อุปกรณ์รับส่งข้อมูลผ่านสายโทรศัพท์ ระยะทางไกลสูงสุด ประมาณ 4.6 - 9.7 กม. ** สอบถามเพิ่มเติมได้ที่ :-     - E-mail :[email protected] หรือ Contact       - "LIVE CHAT" ที่หน้าเว็บไซต์       -  MSN โดย 'add'  E-mail : [email protected]  ได้ทันที      - สอบถามผ่านหน้า  Product Details Product Positioning Ethernet Distance extension The GRT-402 is excellent for Ethernet distance extension over existing telephone wires. With just one pair of AWG-26 copper wires, you can easily connect two Ethernet networks far away (maximum 6.7 kilometers/4.2 miles) with a maximum 4.6Mbps (at maximum 3.3km/2.1 miles) full duplex transfer rate. ISP Solution G.SHDSL is the best solution to quickly provide cost-effective, high-speed network service for Enterprise and SME users or SOHO users who need high-speed symmetrical Internet connections. By utilizing the existing telephony infrastructure, network installation is simple and straightforward. With up to 4.6Mbps full duplex speed IP telephony, website hosting and various broadband services can be easily provisioned. Features   Easy configuration and management with password control for various application environments Efficient IP routing and transparent learning bridge to support broadband Internet services NAT/PAT feature lets user both conserve valuable IP address space and reduce IP address management, meanwhile, also protects certain attack from outer network or internal workstations. Fully ATM protocol stack implementation over SHDSL PPPoA and PPPoE support user authentication with PAP/CHAP/MS-CHAP SNMP management with SNMPv1/SNMPv2 agent and MIB II Console and remote (Telnet or HTTP) administration allow user or service providers to locally or remotely diagnose network problems in detail   SPECIFICATION   Model GRT-402 WAN Interface RJ-11 SHDSL ITU-T G.991.2 (Annex A, Annex B) Encoding Scheme 16-TCPAM Data Rate N x 128Kbps (N=0~36) Impedance 135ohms LAN Interface 4 x RJ-45 Ethernet 10Base-T, 100Base-TX Data Rate 10/100Mbps, Full/Half-Duplex Console port RS-232 LED Indicator General  PWR WAN LNK, ACT LAN LNK/ACT, ALM Routing IP Routing Static Routing and RIPv1/RIPv2 IP masquerading NAT DHCP server DNS relay and caching Bridging IEEE 802.1D transparent learning bridge Configuration Local console (RS-232) , Telnet, Web (HTTP), Password control Network management SNMPv1 / SNMPv2 agent MIB II ATM Up to 8 PVCs UBR/CBR traffic shaping AAL5 OAM F5 loopback ATM Forum UNI 4.0 AAL5 Encapsulation VC multiplexing and SNAP/LLC Ethernet over ATM (RFC 2684/1483) PPP over ATM (RFC 2364) Classical IP over ATM (RFC 1577) PPP PPP over Ethernet (RFC 2516) PPP over ATM (RFC 2364) User authentication with PAP/CHAP/MS-CHAP Physical/Electrical Dimensions (WxDxH) 187 x 145 x 33 mm Power 9V DC, 1.0A Power consumption 9 watts / 30.6 BTU Operating Temp 0 ~ 45 degree C Storage Temp -20 ~ 70 degree C Operating Humidity 0 ~ 95 degree C (non-condensing) Storage Humidity 0 ~ 95 degree C (non-condensing)     EMC/EMI FCC, CE
